    Reduced ligature hinge

    SKU: FH031 89 R PB

    Full DescriptionDownloads & Guides

    Select Finish

    14

    Trad polished brass

    Select Size

    2

    102x89mm

    Select Corners

    2

    Radius

    Request a Sample Now

    Product Description

    Suitable for doors up to 160kgs

    High performance low friction / low wear concealed bearing

    Anti-ligature knuckles

    Tested to EN1935 grade 14

    For use on timber fire doors up to FD60

    Certifire approved

    UKCA marked

    Dimensions

    Height 102mm

    Open width 89mm

    Leaf thickness 3mm

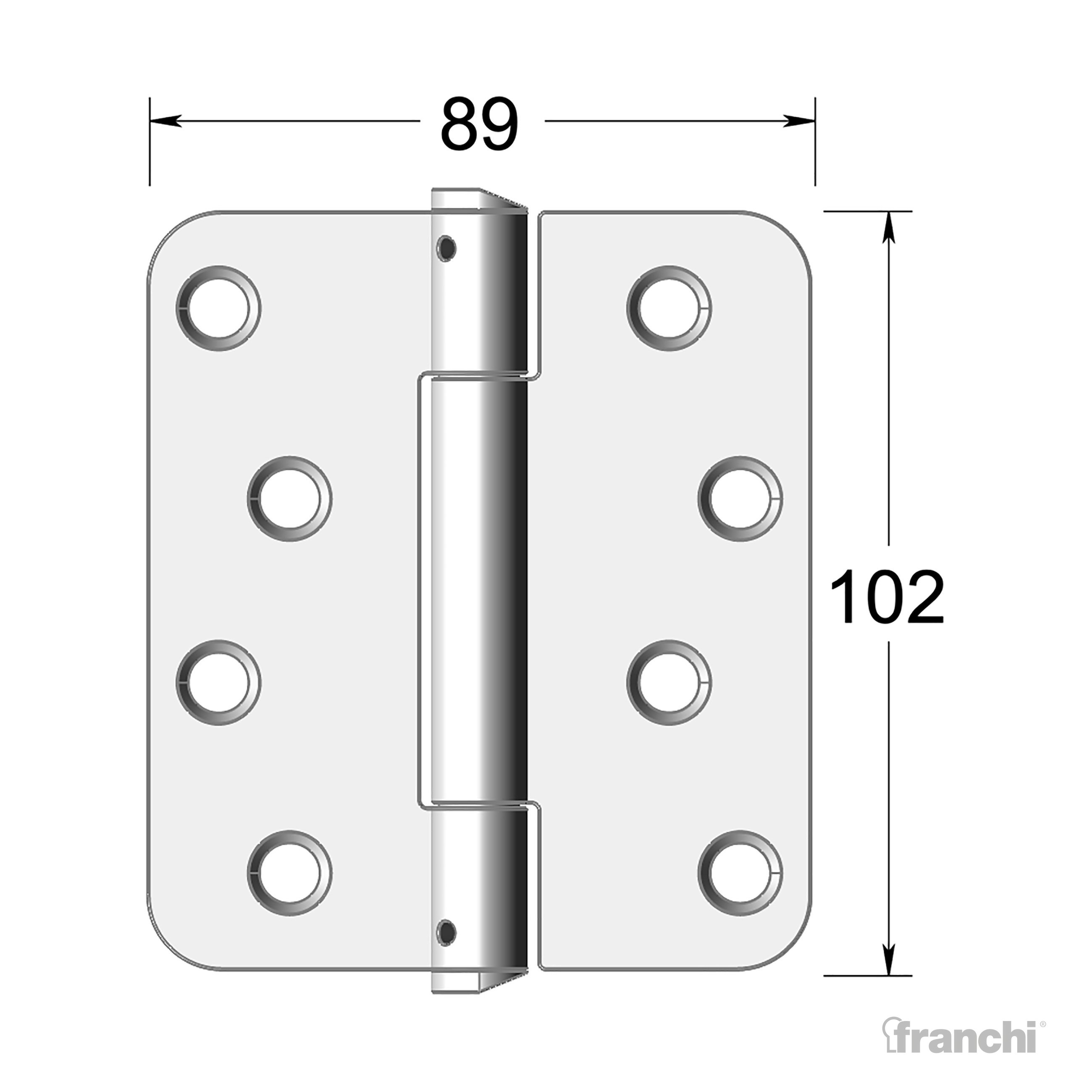

    Dimension Drawing

    Fixing Options

    Guarantee Information

    25 year guarantee
