    High performance concealed bearing butt hinge

    SKU: FH001 R 150 SBKN

    Full DescriptionDownloads & Guides

    Select Finish

    14

    Trad Black Nickel

    Select Size

    5

    102x152mm

    Select Corners

    2

    Radius

    Request a Sample Now

    Product Description

    Suitable for doors up to 160kgs

    High performance low friction / low wear concealed bearing

    Tested to EN1935 grade 14

    For use on timber fire doors up to FD120

    Certifire approved

    UKCA marked

    Dimensions

    Height 102mm

    Open width 152mm

    Leaf thickness 3mm

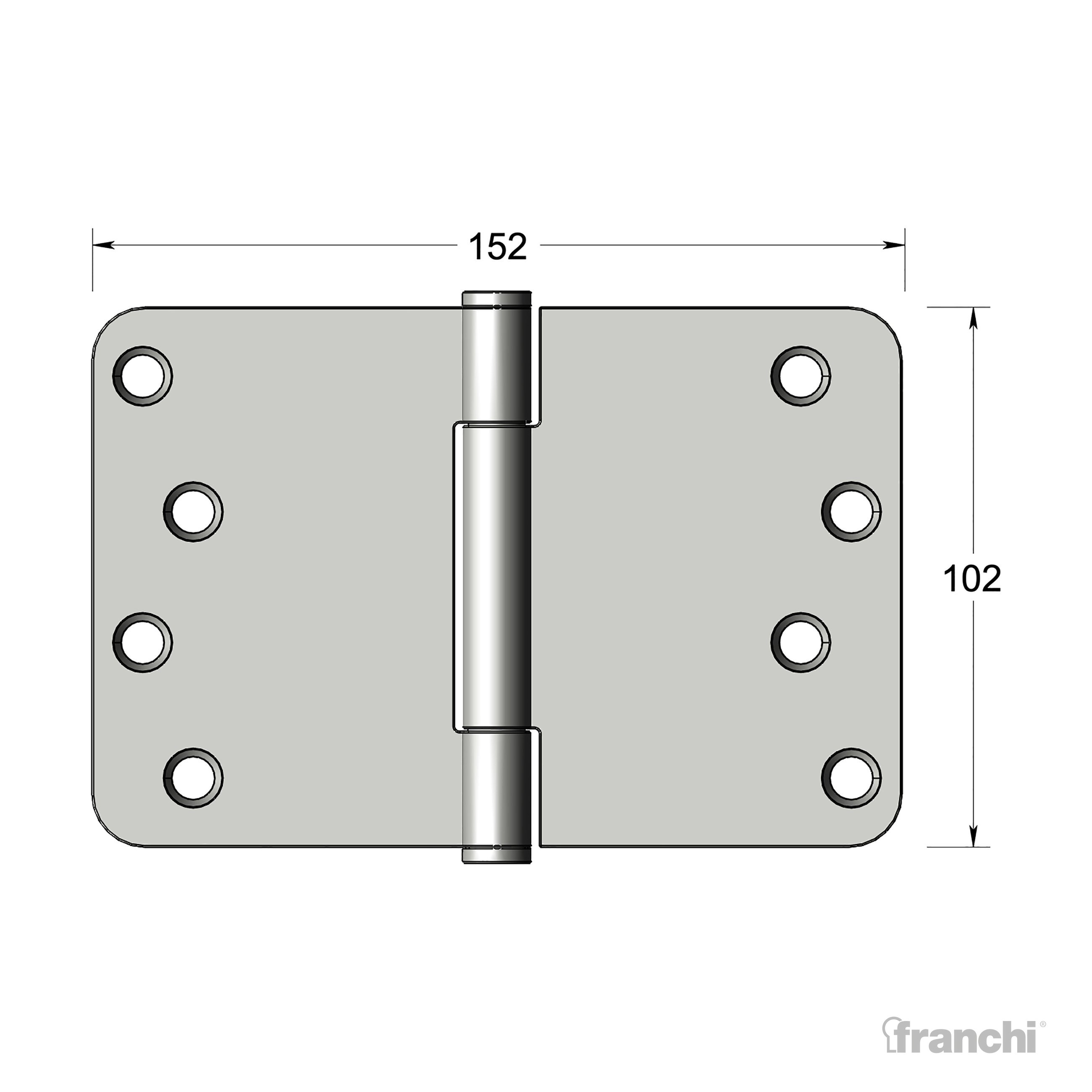

    Dimension Drawing

    Variants

    • Security bolted

      Security bolted

    • Ansi hole pattern

      ANSI hole pattern

    Fixing Options

    • Wood screw

    • Machine screw

    Guarantee Information

    25 year guarantee
